Sakhir, Bahrain – Within the preparatory Components 1 take a look at house, Mercedes has introduced two very completely different variations of its new automotive. When W13 left Barcelona after the primary take a look at, it seemed comparatively typical. When she confirmed up once more in Bahrain for the second take a look at, she seemed actually revolutionary.
The modifications, which primarily centered on the form of the perimeters of the automotive, didn’t go unnoticed by the rival groups, resulting in questions on Mercedes’ legitimacy after only a day of operating.
Inside two hours of the up to date automotive leaving the storage for the primary time on Thursday morning, Pink Bull Racing Crew Principal Christian Horner was quoted by Auto Motor und Sport as saying: “Mercedes has gone a step additional than it ought to. This isn’t within the spirit of the laws.”
A Pink Bull spokesperson later stated the quotes had been “incorrect”, earlier than clarifying that “no official remark” has been made by the group.
F1 motorsport chief Ross Brawn, whose group of engineers have drawn up new F1 technical laws for 2023 to enhance overtaking, admitted they’d not considered Mercedes’ method to aspect obstacles.
“There isn’t any doubt that the Mercedes idea was not what we anticipated and I do not suppose so,” Brawn instructed Sky Sports activities. “It is a very radical interpretation of the laws and I believe there’ll, inevitably, be a number of controversy about their interpretation and that is what’s occurring with the brand new regs.”
Though it seems drastically completely different on the surface, the Mercedes underneath the pores and skin would not look a departure from the automotive that ran in Barcelona. The radiators, that are situated contained in the aspect struts, are nonetheless in a conventional place, and photographs of the automotive with out its hood point out that the design of the inside has not modified for the reason that first take a look at two weeks in the past.

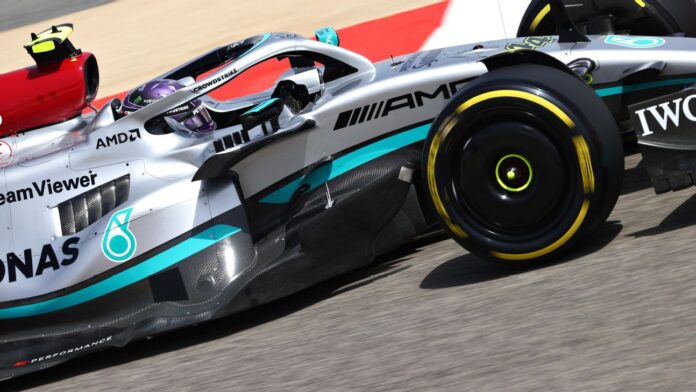

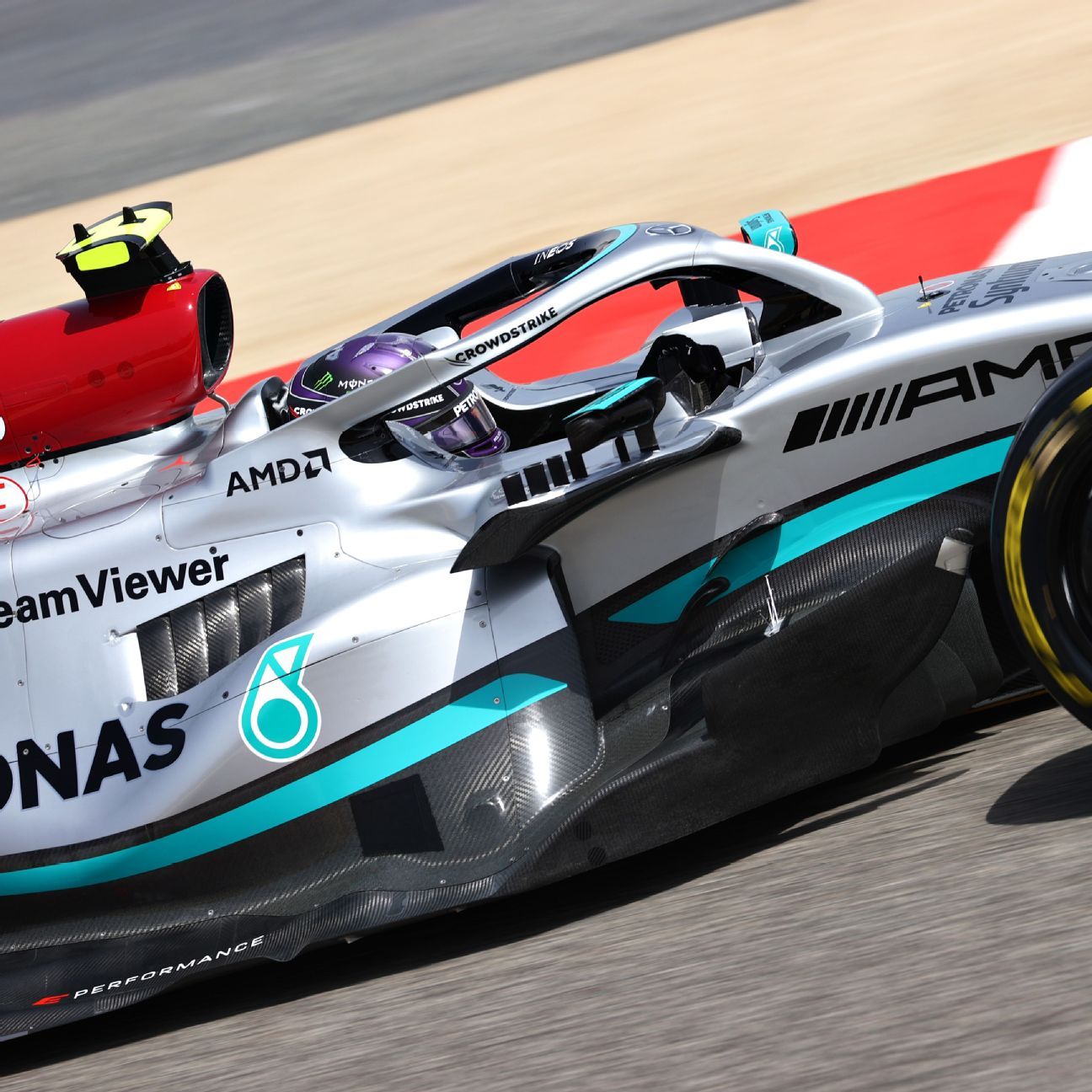

Nonetheless, the coil chassis has modified. The doorway to the sidepods turned from a excessive sq. opening to an inverted triangle. It’s as if a conventional aspect profile design has been turned inward by 90 levels with the widest a part of the doorway now dealing with the ground of the automotive and the narrower half on the high. The hull physique is molded over the inside, sloping downward to make what was already an ultra-thin design even smaller.
It is also superb how far the entrance fringe of the aspect rail begins on the up to date W13. In competitors vehicles, the sidepods begin consistent with the entrance of the cockpit, however on Mercedes they’re much additional out than that. This resulted in an higher aspect affect construction – which is necessary on all vehicles and often a part of the sidewall – protruding in entrance of the aspect entrance. Mercedes has lined the bumper physique in carbon fiber, and it additionally supplies a mounting level for the automotive’s aspect mirrors.
Table of Contents
outdated sidepod
The brand new sidepod
Though the sidepod design has fully modified for the reason that first take a look at, it wasn’t a enterprise for 2 weeks. The brand new method had at all times been within the pipeline as a core a part of Mercedes’ design philosophy and made use of as a lot improvement time as potential, that means it missed the primary take a look at however was prepared for the second. It is also the results of eight-time champions pushing the boundaries of what was beforehand thought of potential.
“We’re actually happy with what we have achieved in idea, however now we have to get it going quick,” group boss Toto Wolff stated on Thursday. “It is a improvement pattern we love and now it is all about automotive tuning.
“We experiment so much and take it curiously.”
George Russell, Mercedes’ new recruit for 2023, added: “It clearly caught the eye of fairly a couple of folks this morning.
“I believe individually, I am proud to be a part of a group that drives innovation and all that onerous work, you understand, blood, sweat and tears goes into, and seeing one thing superb being pulled off is unimaginable.
“However it doesn’t matter what he seems like, we have to see if he is quick heading in the right direction.”
What’s Mercedes attempting to realize?
The brand new F1 laws have thrown up quite a few aerodynamic challenges for the groups, one among which is tips on how to cope with the chaotic airflow coming from the entrance tires. Because the tires spin, it ends in turbulent and surprising airflow behind them, which is unhealthy information for aerodynamics who want a dependable move of unpolluted air to generate downforce from automobile surfaces.
Underneath the most recent set of laws, groups struggled laborious to manage the heels of the entrance tires and switch them outward and away from the automotive. This was achieved partially by the intricate wooden paneling behind the entrance wheels, which helped direct the chaotic airflow outward and away from the automotive. The highly effective vortices created by the entrance spoiler had been additionally used to handle the airflow downstream and in some instances the brake ducts served a secondary objective by diverting airflow by the wheels to drag the aspect tire out.

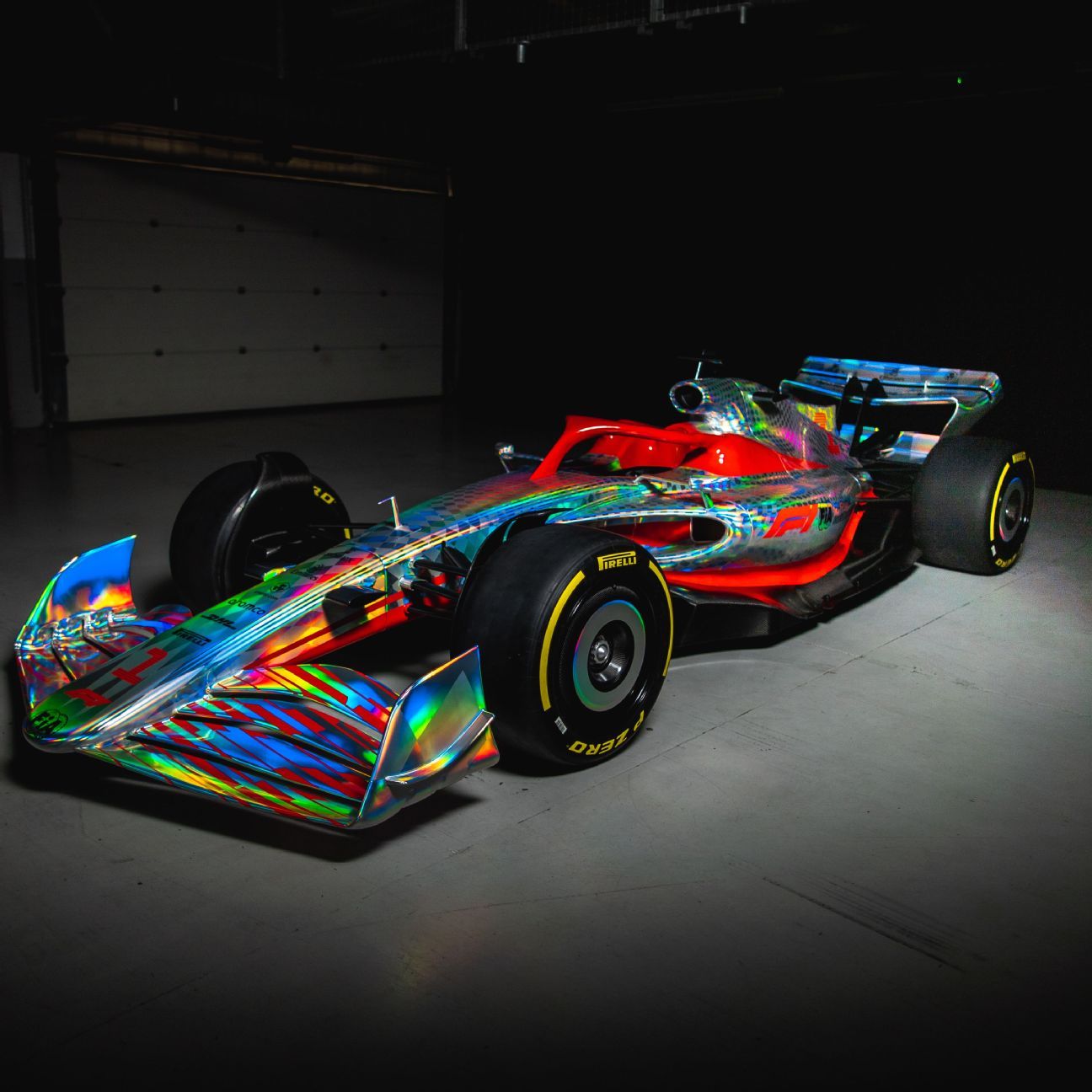

All of those options had been nice for the automotive in query, however created turbulent air for the automotive behind – one thing that the Braun and F1 recognized as an overtaking barrier. The concept of this 12 months’s new technical laws is to manage the airflow the automotive leaves on the entrance in order that the chasing automotive loses much less aerodynamic efficiency and has a greater likelihood of getting shut sufficient to make a transfer.
In consequence, the usage of wooden panels in vehicles of this 12 months was banned, and the shapes of the entrance wings had been regulated extra strictly. However the group’s aerodynamists nonetheless confronted the issue of chaotic air flowing from the entrance wheels and disrupting the aerodynamic surfaces on the rear of the automotive. Discovering an answer to this downside appears to be why there’s a lot distinction in sidepod design this 12 months.
Mercedes’ method is to make the sidepods as skinny as potential so as to get them off the heels of the entrance tires and cease the move of messy air sticking to the bodywork and disrupting the air duct. The W13 design is clearly probably the most excessive instance of this method nevertheless it will also be seen to some extent on Williams.
Another technique is to make use of a really broad sidewall to push the turbulent airflow out laterally, which will be seen in probably the most excessive instance of a Ferrari. There are two other ways to sort out the identical downside, however at this level it is nonetheless too early to declare a transparent winner.
“The entrance tire has at all times been a consider a automotive’s efficiency, and has in all probability at all times been one of many greatest aerodynamic components to work with,” Mercedes technical director Mike Elliott instructed Sky Sports activities. “Up to now we have had bargeboards and issues like that, which had been taken from us, and we have had move through the axle, which takes the brake duct move and drives it by the axle, which we will not do that 12 months, so now it’s important to discover different methods to realize the identical factor.
“For us, we did that utilizing the slim lateral format to cease the entrance tire alert from sticking to the aspect mount and pulling in. The opposite groups would have gone out of their method to push the sidewall out as a lot as potential to try to push that approach. It’s two methods to attempt to do the identical.”
Is that this a win-win resolution?
Ferrari group principal Mattia Binotto admitted that Mercedes’ method caught his eye, however saved his playing cards near his chest on whether or not Maranello’s aerodynamics specialists thought of the identical.
“I do not doubt it [the Mercedes] It is an incredible automotive – it should not come as a shock to us,” he stated, “it is a very completely different idea from ours, fairly fascinating with the cooling design and sidewalls.” “
He went on to focus on the collision construction that helps the rear-view mirrors as one space of questionable legality.
“On the mirrors, it was shocking,” he stated. We weren’t anticipating that.
“We have at all times stated that the mirror should have no antenna objective, and the best way they deal with their vehicles there is a crucial aerodynamic objective within the mirrors.
“The chance sooner or later is that each one groups will begin designing mirrors that seem like spaceships. Within the spirit of what we intend to do sooner or later, that is one thing we have to focus on.”
Wolff responded to ideas that Mercedes had taken its design out of the spirit of the laws, saying the group had been in fixed contact with the FIA through the design course of.
“Clearly generally once you provide you with an innovation, it creates the type of dialogue we now have right here,” Wolf stated. “It was anticipated.
“We had been cautious to not run alone with our design, however in touch with the FIA. That is why I believe he’ll be nice.”
Elliott added: “Now we have a authorized kind and it passes the laws and we predict the FIA is pleased with that. They noticed the CAD [Computer Automated Design]. When it comes to tips on how to flip that into variations, everybody should look and try to work out for themselves what we did and go from there.
“It is at all times our job to strive to determine tips on how to get probably the most out of laws. I believe, because it at all times occurs, folks decide up on the large visible variations and the large visible variations aren’t at all times rather than cycle time.
“On this case, this can be a transfer that we discovered a short time in the past and determined so as to add to our automotive. Clearly once you do one thing very completely different, you go and discuss to the FIA first, and we did.”
However for all of the give attention to the seen components of the brand new vehicles, what you’ll be able to’t see will doubtless be the important thing to success this season.
The reintroduction of ground-effect aerodynamics as a part of this 12 months’s laws means the underside of the automotive is the place a number of efficiency can unlock. After years of laws with flat-bottomed vehicles, groups can now form the underside of the automobile to hurry up the move of air underground, creating decrease stress that sucks the automotive into the monitor. Once more, this was a part of new laws geared toward making vehicles much less delicate to operating within the wake of a competitor.
Mercedes’ Bahrain improve got here with hints of modifications to the ground as properly, with modified underfloor “Venturi Tunnels” inlets, which generate decrease stress underneath the automotive. The higher deck is designed to work in tandem with the decrease flooring and the brand new aspect struts appear designed to assist velocity up the air move over the diffuser on the rear of the automotive, serving to to activate the downflow that is answerable for so many components of the automotive. backside power.
Nonetheless, it seems Mercedes nonetheless has a method to go to take the efficiency it noticed in its wind tunnel to on-track efficiency. Each drivers struggled underneath braking on quite a few events on Thursday in Bahrain, and chief monitor engineer Andrew Shovlin stated there was a number of work to be carried out over the ultimate two days of testing to get Lewis Hamilton and Russell blissful behind the wheel.
“In comparison with Barcelona, it was tough to get a superb stability of the automotive across the lap right here,” stated Shovlin. “It seems like we have made some progress through the day, nevertheless it’s at all times laborious to evaluate precisely right here as a result of cooler temperatures are likely to make no matter you do later within the day higher.
“We nonetheless have a number of work to do when it comes to replace batch validation and we’ll proceed our information assortment program over the subsequent few days, so it is early to say if every thing is working as anticipated.
“There’s positively extra to seek out in getting the appropriate stability between gradual and high-speed cornering, and there’s additionally a number of tire overheating. So there’s a lot to maintain us busy for the subsequent couple of days however we’re on a steep studying curve with the automotive and the brand new tires – we’ll analyze what we now have from as we speak and hopefully To take a step ahead tomorrow.”
